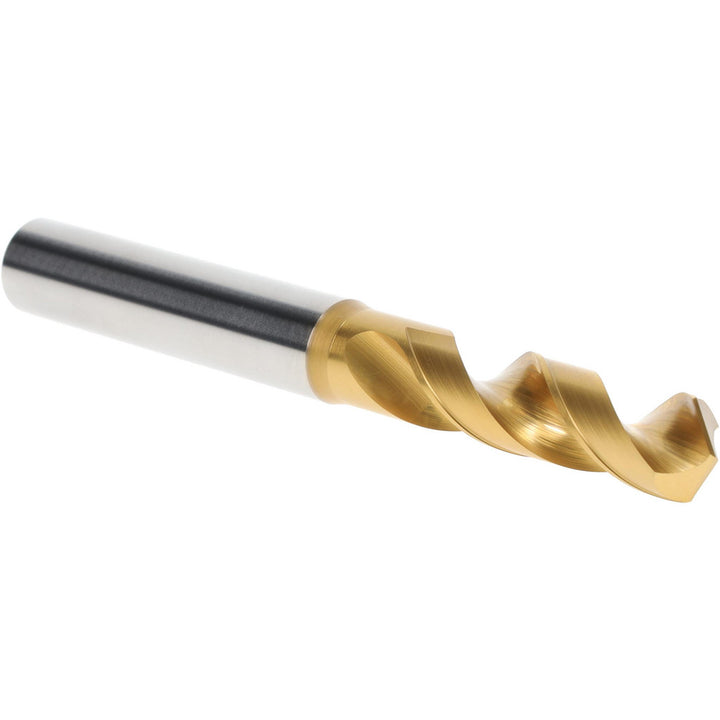

0.4331" High-Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 61610

OSG

0.4331" High-Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 61610

MFR# 61610Series 1100

$92.38List $118.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 61610 is a 0.4331" High-Speed Steel Screw Machine drill bit with a TiN finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size0.4331
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)47.00
Flute typeSpiral
Number of flutes2
Overall length4.0945
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.4724
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
