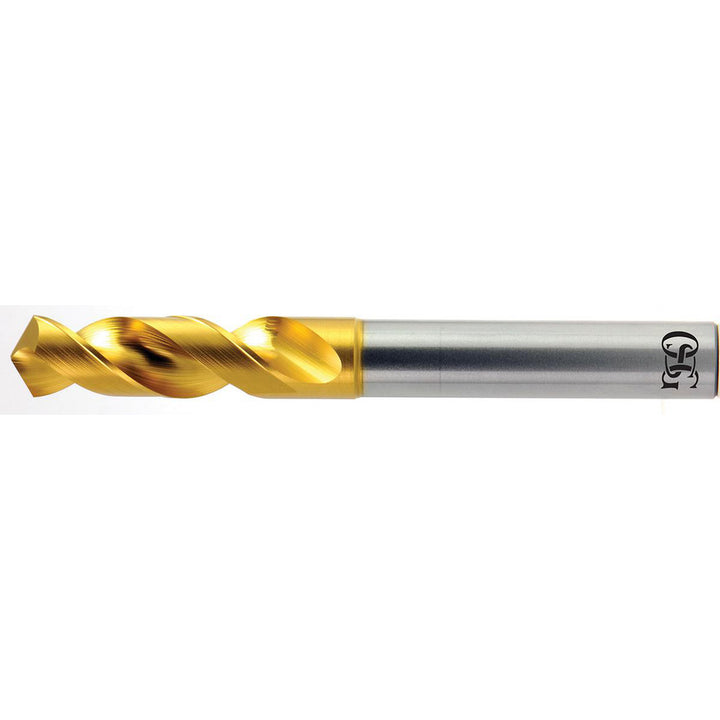

0.4567" Vanadium High Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 61616
MFR# 61616Series 1100
$129.49List $166.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 61616 is a 0.4567" Vanadium High Speed Steel Screw Machine drill bit with a TiN finish, 120° point. Suited for steel, stainless steel, aluminum & non-ferrous. Series 1100.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size0.4567
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)47.00
Flute typeRegular Spiral
Number of flutes2
Overall length4.0945
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous
Shank diameter0.4724
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
