OSG

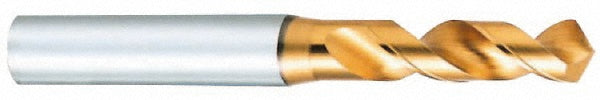

0.5276" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 61634
MFR# 61634Series 1100
$135.89List $174.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 61634 is a 0.5276" Vanadium High Speed Steel drill bit with a TiN finish, 120° point. Suited for aluminum, carbon steel, high nickel alloy, stainless steel, titanium. Series 1100.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size0.5276
Drill bit size range0.5000 to 0.6000
Drill point angle120
Flute length (mm)54.00
Flute typeRegular Spiral
Number of flutes2
Overall length4.4882
Point type4 Facet
Primary workpiece materialAluminum; Carbon Steel; High Nickel Alloy; Stainless Steel; Titanium
Shank diameter0.6299
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
