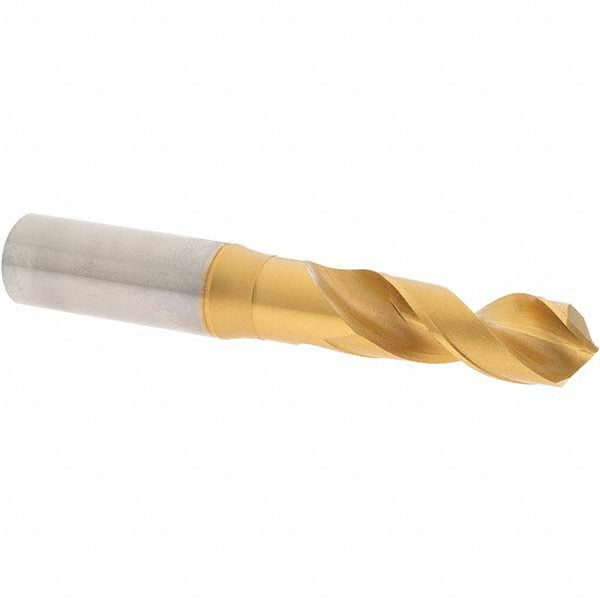

0.6811" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 61673

OSG

0.6811" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 61673

MFR# 61673Series 1100

$211.04List $270.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 61673 is a 0.6811" High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size0.6811
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)60.00
Flute typeSpiral
Number of flutes2
Overall length (mm)128.00
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)20.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
