OSG
0.1929" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 62549
MFR# 62549
$35.32List $45.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

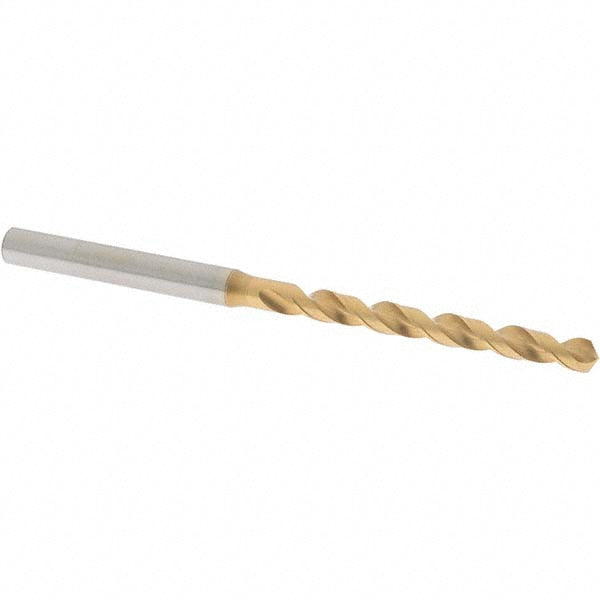

The OSG 62549 is a 0.1929" Vanadium High Speed Steel drill bit with a TiN finish, 120° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.1929
Drill bit size range0.1500 - 0.2000
Drill point angle degrees120
Flute length (mm)52.00
Flute typeSpiral
Overall length (mm)96.00
Point typeStandard
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeFast
Web configurationTapered
Web thinningS-Thinned
