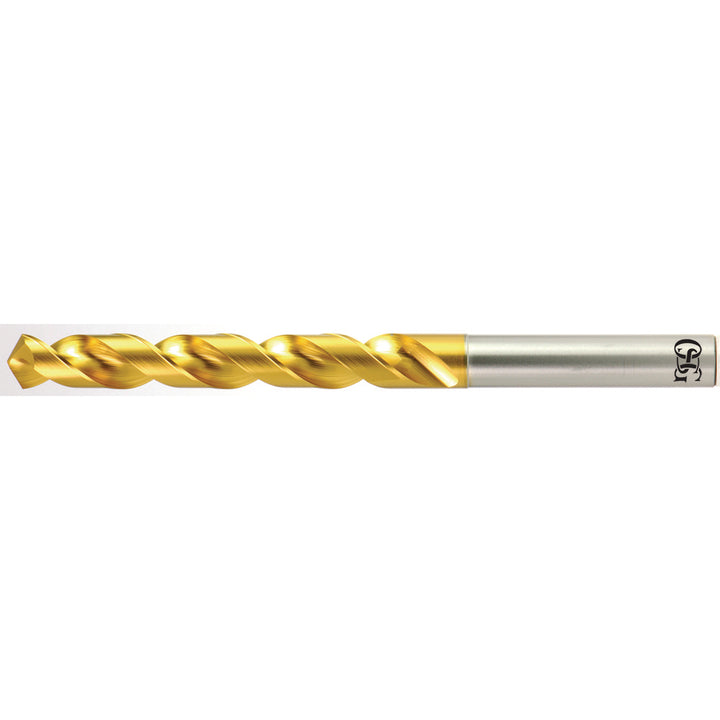

0.3543" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 62590

OSG

0.3543" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 62590

MFR# 62590Series 1600

$62.90List $80.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 62590 is a 0.3543" Vanadium High Speed Steel drill bit with a TiN finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.3543
Drill bit size range0.3500 - 0.4000
Drill point angle degrees120
Flute length (mm)81.00
Flute typeSpiral
Number of flutes2
Overall length (mm)131.00
Point typeS-Thinned
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
