1/8" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG 630012311

OSG

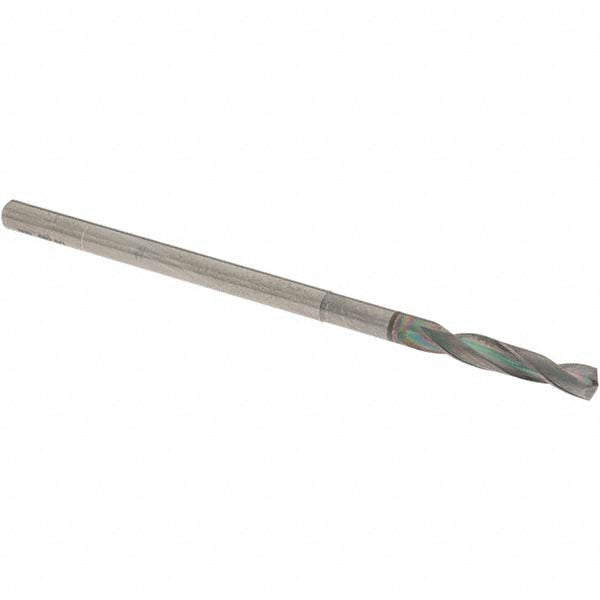

1/8" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG 630012311

MFR# 630012311Series 6300

$64.97List $83.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingCoated

Description

The OSG 630012311 is a 1/8" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for steel, alloy steel, cast iron. Series 6300.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio2xD
Flute length (mm)20.00
Flute typeSpiral
Number of flutes2
Overall length (mm)66.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
