OSG

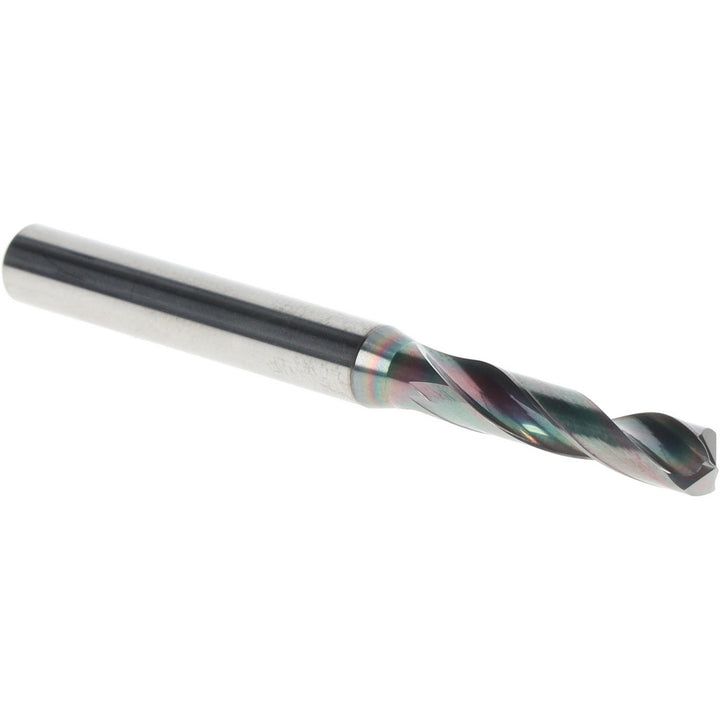

13/64" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG 630020211
MFR# 630020211Series 6300
$71.90List $92.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/64
Flutes2
CoatingEgiAs
Description
The OSG 630020211 is a 13/64" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series 6300.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio2xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length2.5984
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
