OSG

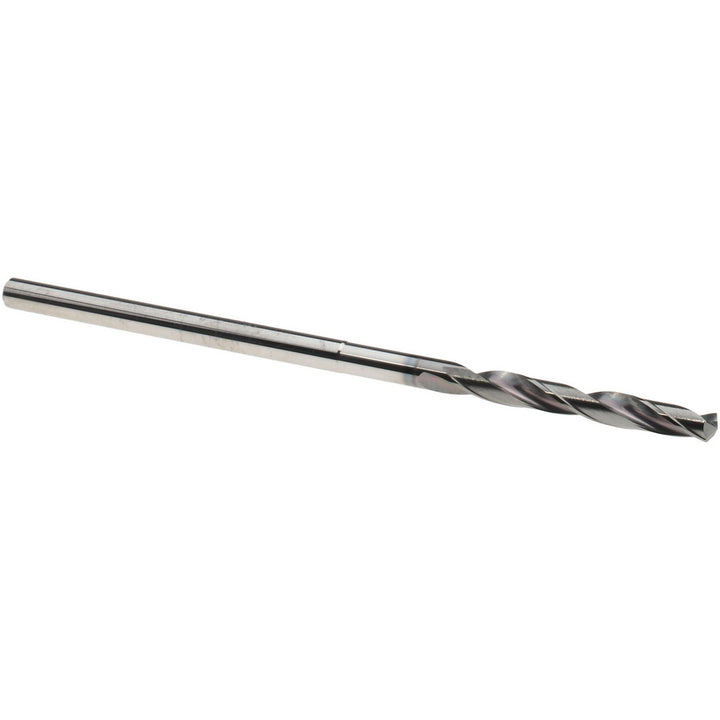

1/8" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 631012311
MFR# 631012311Series 6310
$70.04List $89.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingEgiAs
Description
The OSG 631012311 is a 1/8" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series 6310.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit materialSolid Carbide
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Flute by diameter ratio4xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length (mm)74.00
Point typeX-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
