OSG

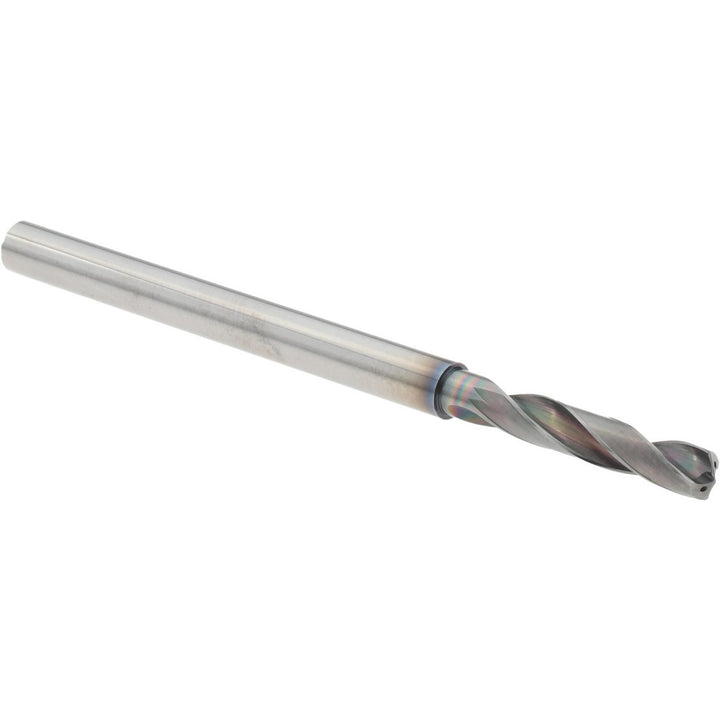

5/32" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG 650015511
MFR# 650015511Series 6500
$91.01List $116.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
CoatingEgiAs
Description
The OSG 650015511 is a 5/32" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6500.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in5/32
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length2.9134
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter0.1875
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
