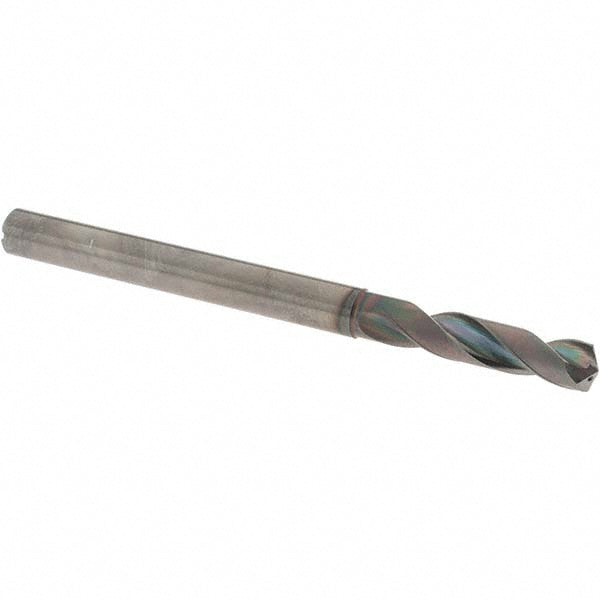

15/64" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG 650023311

OSG

15/64" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG 650023311

MFR# 650023311Series 6500

$113.47List $145.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2
CoatingCoated

Description

The OSG 650023311 is a 15/64" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6500.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in15/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)30.00
Flute typeSpiral
Number of flutes2
Overall length (mm)82.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
