OSG

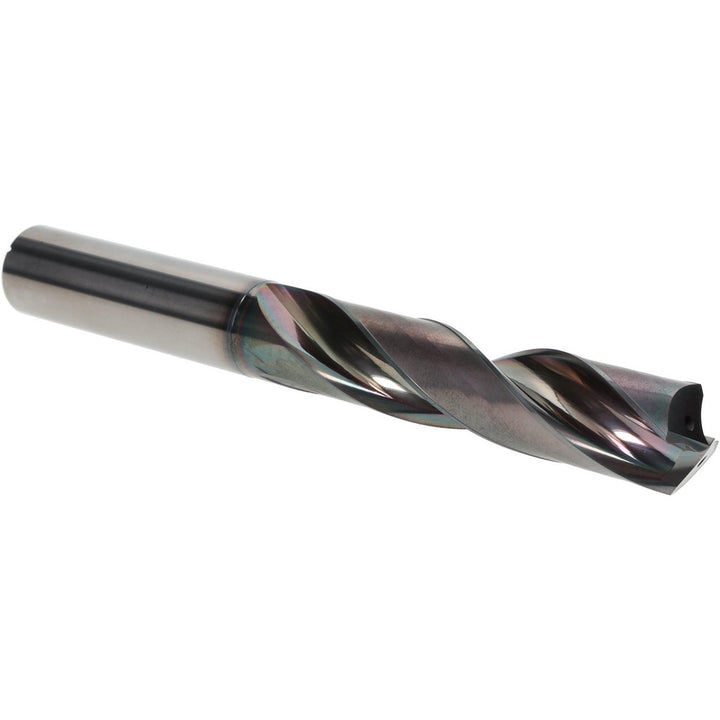

3/4" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG 650075011
MFR# 650075011Series 6500
$497.39List $637.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/4
Flutes2
CoatingEgiAs
Description
The OSG 650075011 is a 3/4" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6500.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.033 mm
Drill bit size in3/4
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)95.00
Flute typeSpiral
Number of flutes2
Overall length6.2992
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter0.7500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
