OSG

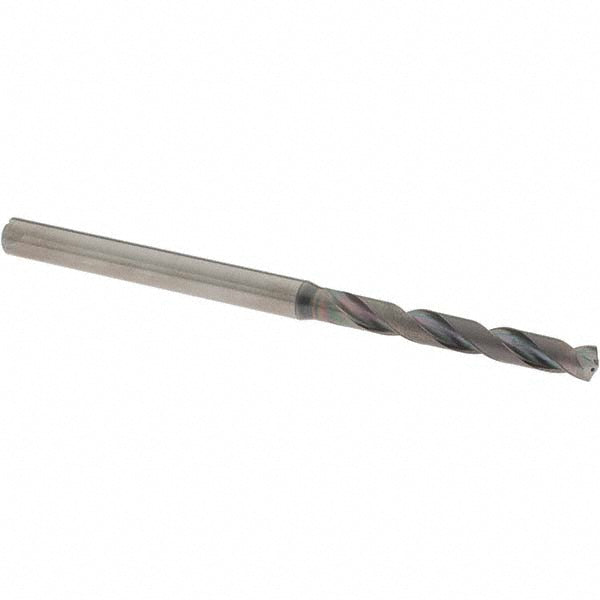

#3 Solid Carbide Drill Bit, EgiAs, 140° point - OSG 651021311
MFR# 651021311Series 6510
$126.48List $162.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 651021311 is a #3 Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6510.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingEgiAs
Drill bit materialSolid Carbide
Drill bit size0.2130
Drill bit size range0.2000 - 0.2500
Drill bit size wire#3
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)44.00
Flute typeSpiral
Number of flutes2
Overall length (mm)100.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter in1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
