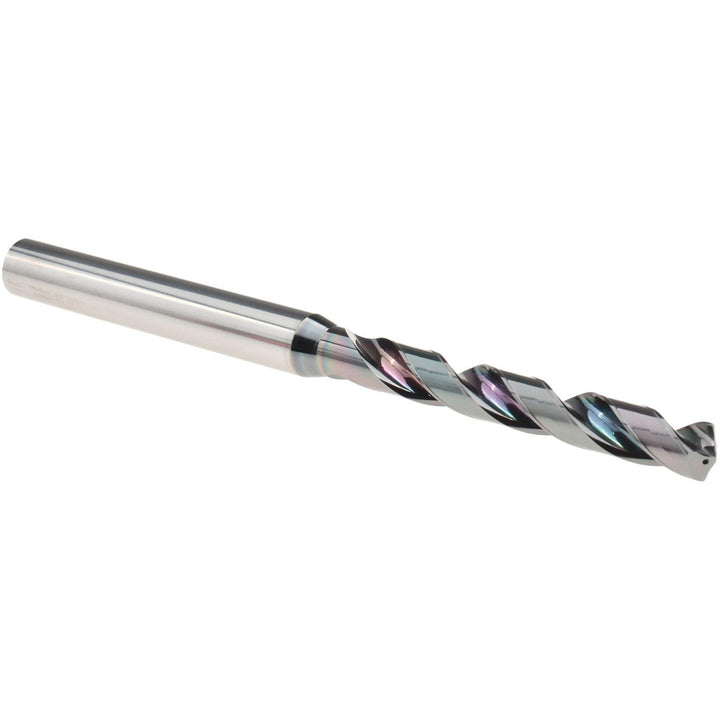

Letter F Solid Carbide Drill Bit, EgiAs, 140° point - OSG 651025611
MFR# 651025611Series 6510
$141.51List $181.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG 651025611 is a Letter F Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6510.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit materialSolid Carbide
Drill bit size0.2571
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Number of flutes2
Overall length (mm)109.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
