OSG

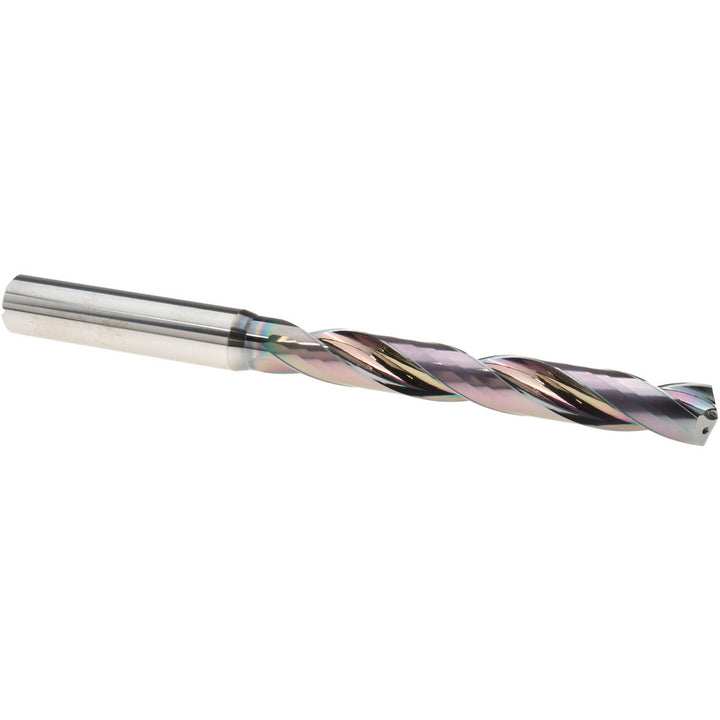

9/16" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 651056111
MFR# 651056111Series 6510
$335.56List $430.37
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
CoatingEgiAs
Description
The OSG 651056111 is a 9/16" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6510.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit materialSolid Carbide
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)115.00
Flute typeSpiral
Number of flutes2
Overall length (mm)185.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter in5/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
