OSG

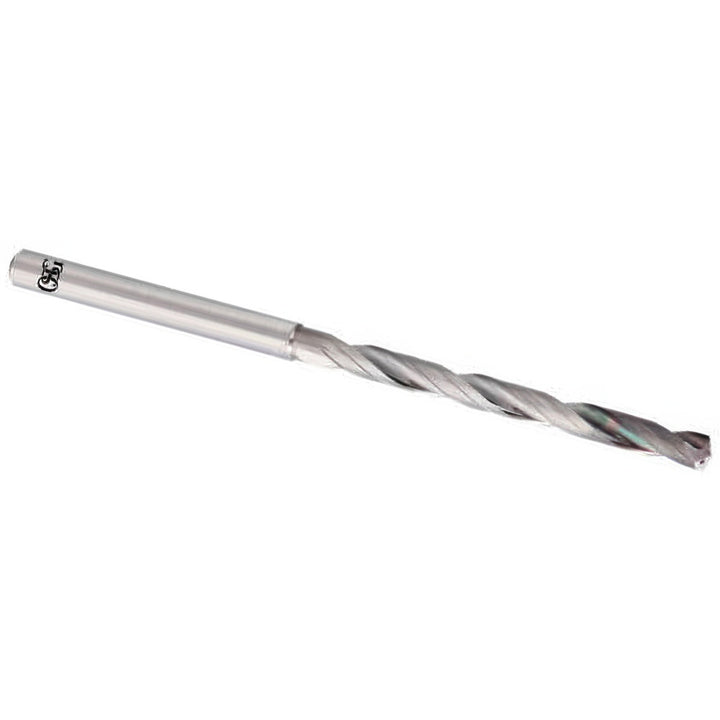

25/64" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 652038811
MFR# 652038811
$269.19List $345.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
CoatingEgiAs
Description
The OSG 652038811 is a 25/64" Solid Carbide drill bit with a EgiAs finish, 140° point.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size in25/64
Drill point angle degrees140
Flute length (mm)110.00
Flute length x diameter ratio8xD
Flute typeSpiral
Overall length (mm)160.00
Shank diameter in7/16
Shank typeStraight
Tool materialSolid Carbide
Web thinningX-Thinned
