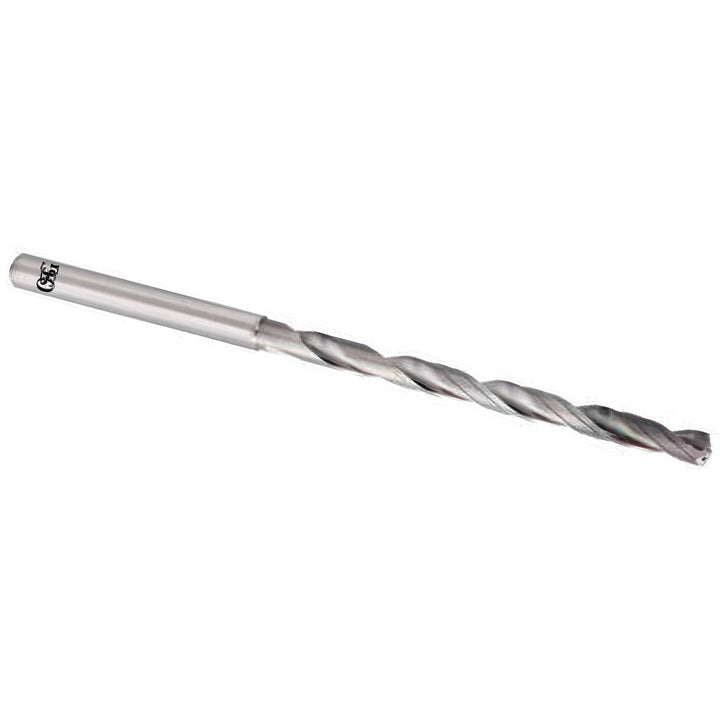

3/32" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 653009312
MFR# 653009312Series 6530
$215.41List $271.47
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/32
CoatingEgiAs
Description
The OSG 653009312 is a 3/32" Solid Carbide drill bit with a EgiAs finish, 140° point. Series 6530.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size in3/32
Drill point angle degrees140
Flute length (mm)33.00
Flute length x diameter ratio10xD
Flute typeSpiral
Overall length (mm)75.00
Shank diameter (mm)3.00
Shank typeStraight
Tool materialSolid Carbide
Web thinningX-Thinned
