OSG

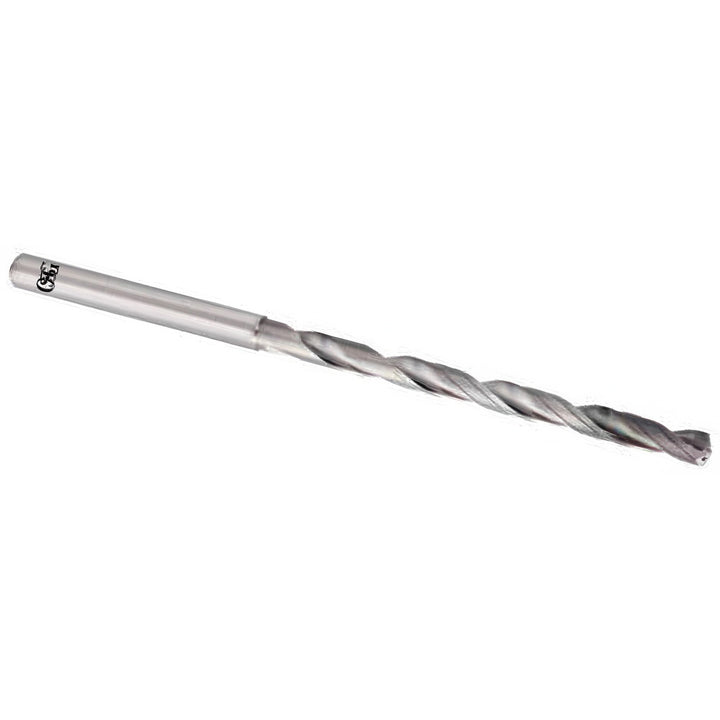

0.1142" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 653011412
MFR# 653011412Series 6530
$192.43List $246.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingEgiAs
Description
The OSG 653011412 is a 0.1142" Solid Carbide drill bit with a EgiAs finish, 140° point. Series 6530.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.1142
Drill point angle degrees140
Flute length (mm)40.00
Flute length x diameter ratio10xD
Flute typeSpiral
Overall length (mm)90.00
Shank diameter (mm)3.00
Shank typeStraight
Tool materialSolid Carbide
Web thinningX-Thinned
