OSG

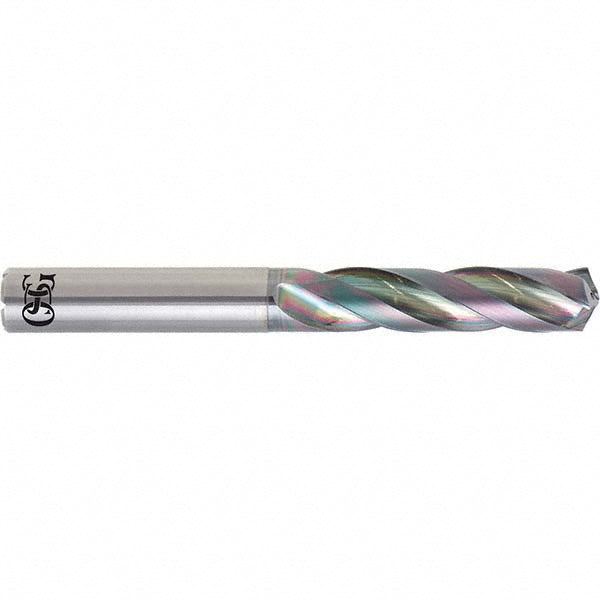

17/32" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 660053117
MFR# 660053117Series 6600
$342.63List $439.44
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes3
CoatingEgiAs
Description
The OSG 660053117 is a 17/32" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, stainless steel, hard material, cast iron. Series 6600.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.0011 in
Drill bit size in17/32
Drill bit size range0.5000 to 0.6000
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)68.00
Flute typeSpiral
Number of flutes3
Number of margins1
Overall length5.2756
Point typeR-Thinned
Primary workpiece materialSteel; Stainless Steel; Hard Material; Cast Iron
Shank diameter0.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
