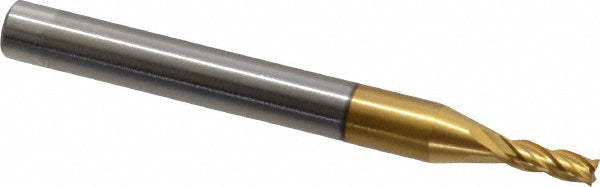

3/32" 4-Flute Powdered Metal High Speed Steel Square End Mill, TiN - OSG 6777405

OSG

3/32" 4-Flute Powdered Metal High Speed Steel Square End Mill, TiN - OSG 6777405

MFR# 6777405Series 677

$24.31List $31.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialPowdered Metal High Speed Steel
CoatingTiN

Description

The OSG 6777405 is a 3/32 4-flute Powdered Metal High Speed Steel (VC10) square end mill with a Titanium Nitride finish for longer tool life. 9/32 length of cut, 1-7/8 overall length. Series 677.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialPowdered Metal High Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/32
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeVC10
Mill diameter in3/32
Number of flutes4
Overall length in1-7/8
Shank diameter in3/16
Variable helixNo
Variable indexNo
