OSG

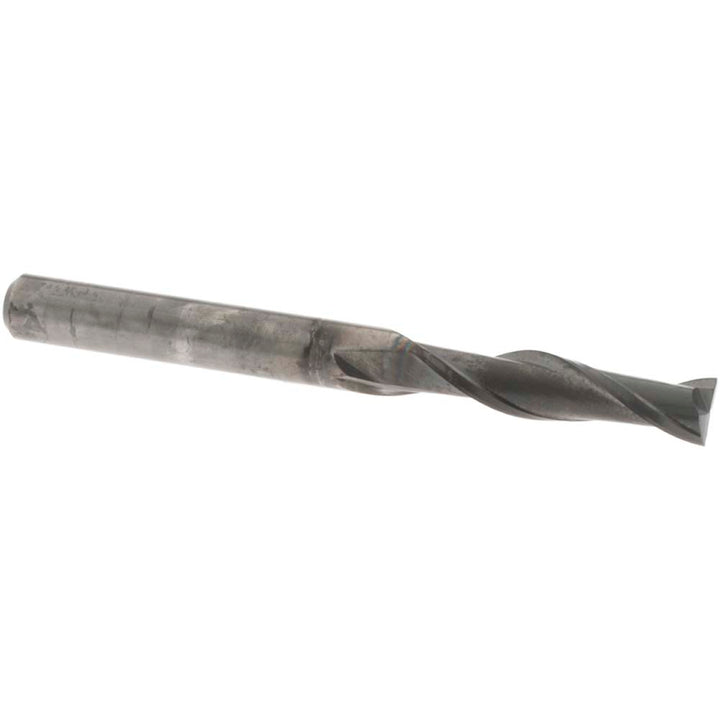

3/16" 2-Flute Solid Carbide Square End Mill - OSG 70200916
MFR# 70200916Series 7020
$168.27List $215.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide
Description
The OSG 70200916 is a 3/16 2-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2 overall length. Series 7020.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.00/-0.02 mm
Number of flutes2
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
