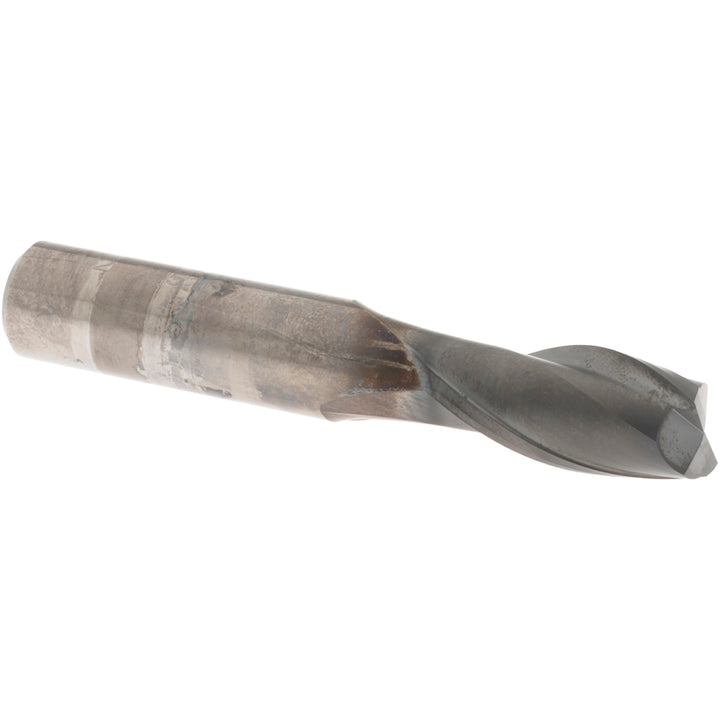

1/2" 2-Flute Solid Carbide Square End Mill - OSG 70201616

OSG

1/2" 2-Flute Solid Carbide Square End Mill - OSG 70201616

MFR# 70201616Series 7020

$322.41List $413.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide

Description

The OSG 70201616 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series 7020.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.00/-0.02 mm
Number of flutes2
Overall length in3
Shank diameter in1/2
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel1/2" 2-Flute Solid Carbide Square End Mill - Hertel 12467477 $52.32 Kennametal0.5000" 2-Flute Solid Carbide Single End Mill - Kennametal 5058612 $116.44 SGS1/2" 2-Flute Solid Carbide Square End Mill - SGS 35289 $69.28 OSG1/2" 2-Flute Solid Carbide Square End Mill, TiCN - OSG 462-500108 $94.83
