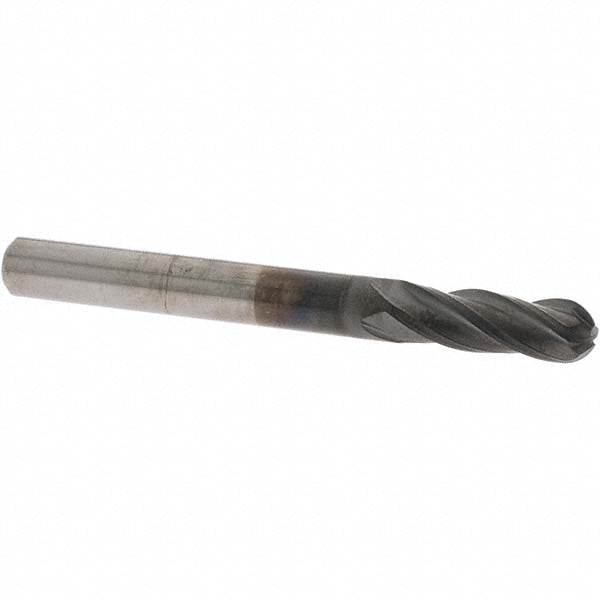

1/4in" 4-Flute Solid Carbide Ball End Mill, Diamond - OSG 70301116

OSG

1/4in" 4-Flute Solid Carbide Ball End Mill, Diamond - OSG 70301116

MFR# 70301116Series 7030

$204.77List $262.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes4
MaterialSolid Carbide
CoatingDiamond

Description

The OSG 70301116 is a 1/4in 4-flute Solid Carbide ball end mill with a Diamond finish for longer tool life. Suited for non-ferrous metal, graphite. 3/4in length of cut, 2-1/2in overall length. Series 7030.

Specifications

Additional informationExocarbdiamond High Performance Diamond Coated Ball Mills For Graphite & Non-Ferrous Materials
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number70301116
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0015 in
Neck length0.0000
Nose radius0.1250
Number of flutes4
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal; Graphite
Reach length0.7500
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
