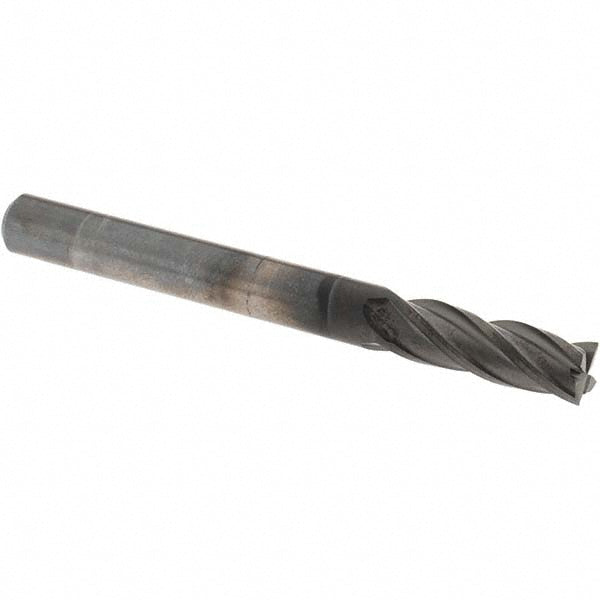

1/4" 4-Flute Solid Carbide Square End Mill - OSG 70401116

OSG

1/4" 4-Flute Solid Carbide Square End Mill - OSG 70401116

MFR# 70401116Series 7040

$189.63List $243.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide

Description

The OSG 70401116 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 7040.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

RobbJack1/4" 4-Flute Solid Carbide Square End Mill - RobbJack T12-405-08 $71.68 ProMax1/4" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 129-41612 $27.45 Guhring1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9030960063500 $66.56 Hertel1/4" 4-Flute Solid Carbide Square End Mill, TiN - Hertel 750910 $35.08
