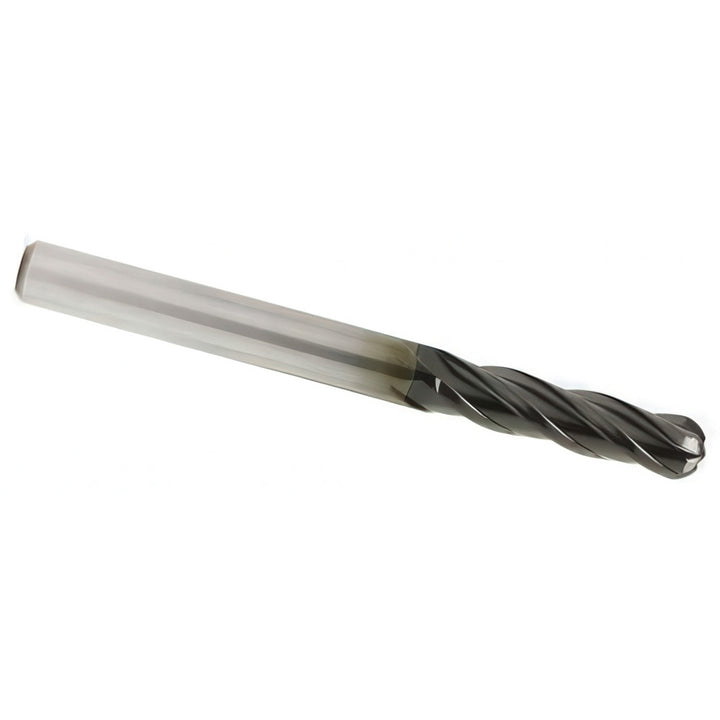

1/16in" 4-Flute Solid Carbide Ball End Mill, Diamond - OSG 72300416

OSG

1/16in" 4-Flute Solid Carbide Ball End Mill, Diamond - OSG 72300416

MFR# 72300416Series 7230

$205.07List $263.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16in
Flutes4
MaterialSolid Carbide
CoatingDiamond

Description

The OSG 72300416 is a 1/16in 4-flute Solid Carbide ball end mill with a Diamond finish for longer tool life. Suited for non-ferrous metal, graphite. 3/16in length of cut, 1-1/2in overall length. Series 7230.

Specifications

Additional informationExocarbdiamond High Performance Diamond Coated Ball Mills For Graphite & Non-Ferrous Materials
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/16in
Length typeStandard
Manufacturers catalog number72300416
Material removal typeRoughing & Finishing
Mill diameter in1/16in
Mill diameter tolerance+0.0000/-0.0005 in
Neck length0.0000
Nose radius0.0313
Number of flutes4
Overall length in1-1/2in
Primary workpiece materialNon-Ferrous Metal; Graphite
Reach length0.1875
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
