OSG

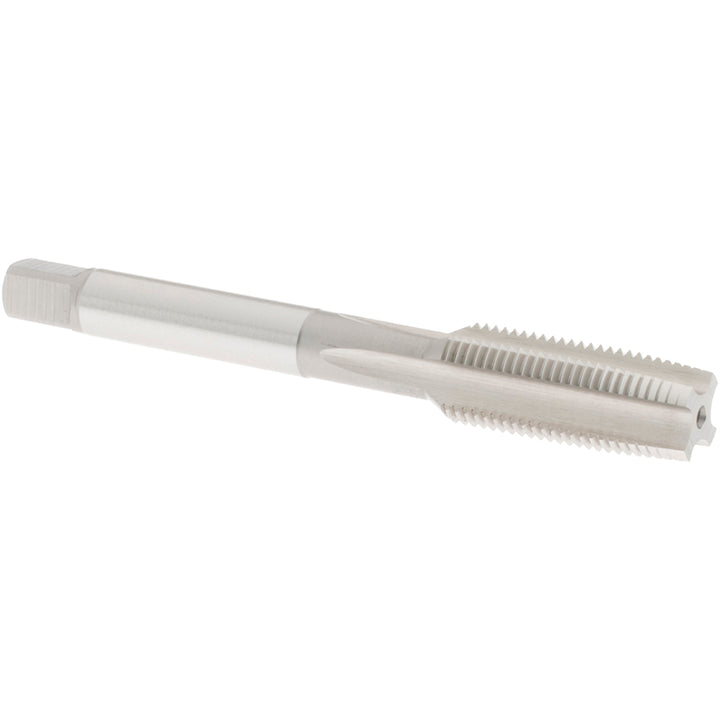

M10x1 Metric Fine High-Speed Steel Standard Tap - OSG 751
MFR# 751Series 121
$22.98List $29.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The OSG 751 is a Metric Fine High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationTapping
ChamferTaper
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length41.00
Number of flutes4
Overall length (mm)75.00
OversizeNo
Shank diameter (mm)7
Square length (mm)8
Square size (mm)5.5
Tap typeStandard
Thread directionRight Hand
Thread length (mm)24
Thread size (mm)M10x1
Thread standardMetric Fine
