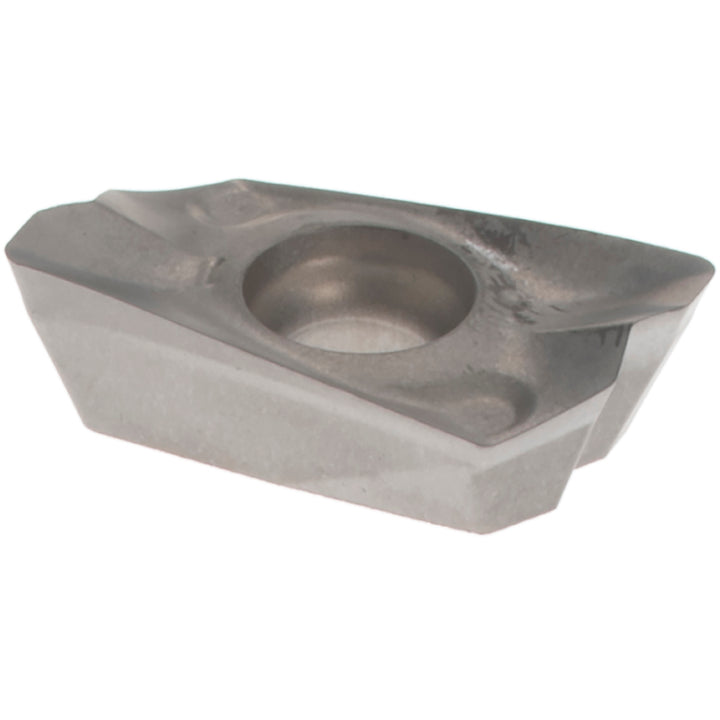

ZDKT150508FR-NM Solid Carbide Insert, Grade CK010 - OSG 7811046
MFR# 7811046ISO/ANSI# ZDKT150508FR-NMSeries 78PSE
$27.31List $35.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeCK010
MaterialSolid Carbide
Description
The OSG 7811046 is a ZDKT150508FR-NM solid carbide indexable insert, grade CK010. Suited for non-ferrous metal.
Specifications
Ansi codeZDKT150508FR-NM
Chip breakerNM
Coating processUncoated
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.3661
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleZDKT
Iso codeZDKT150508FR-NM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog number7811046
Manufacturer gradeCK010
Material applicationNon-Ferrous Metal
Maximum depth of cut0.0630
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.3661
