OSG

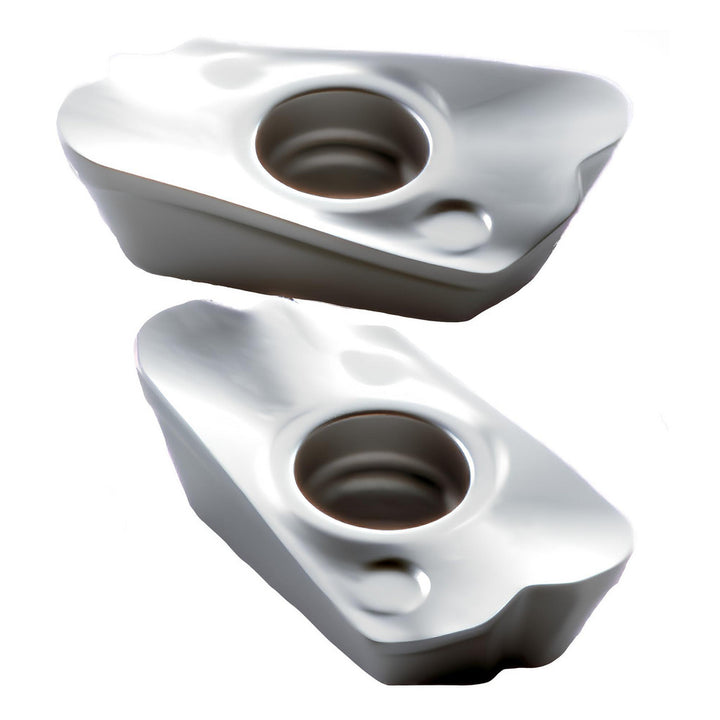

ZDKT150508SR-GM Solid Carbide Insert, Grade XC1015, TiCN - OSG 7812029
MFR# 7812029ISO/ANSI# ZDKT150508SR-GMSeries 78PSE
$23.22List $29.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeXC1015
MaterialSolid Carbide
CoatingTiCN
Description
The OSG 7812029 is a ZDKT150508SR-GM solid carbide indexable insert, grade XC1015, TiCN coated. Suited for cast iron.
Specifications
Ansi codeZDKT150508SR-GM
Chip breakerGM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3661
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleZDKT
Iso codeZDKT150508SR-GM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog number7812029
Manufacturer gradeXC1015
Material applicationCast Iron
Maximum depth of cut0.0630
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.3661
