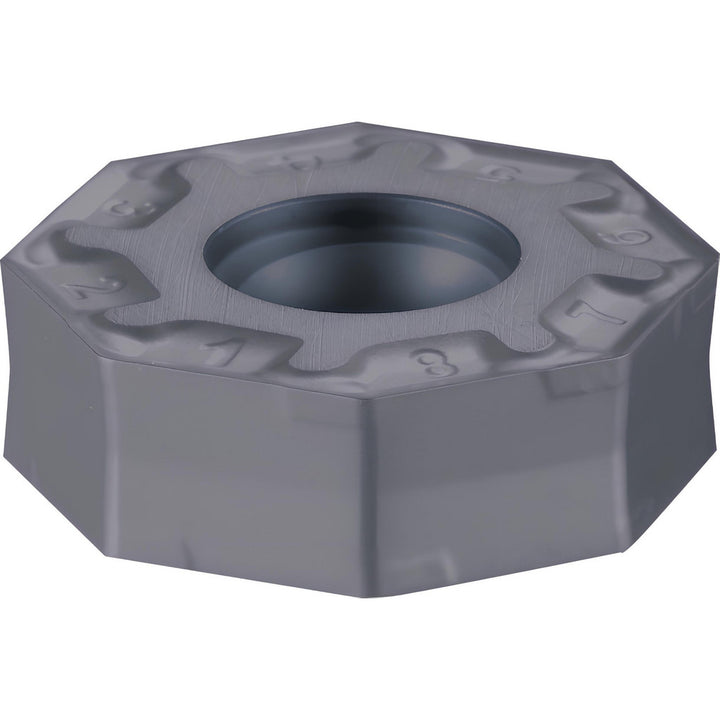

XAHT060525SR-GM Solid Carbide Insert, Grade XC1015, TiCN - OSG 7812064
MFR# 7812064ISO/ANSI# XAHT060525SR-GMSeries 78PAO
$29.75List $38.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC43/64
ShapeIrregular
GradeXC1015
MaterialSolid Carbide
CoatingTiCN
Description
The OSG 7812064 is a XAHT060525SR-GM solid carbide indexable insert, grade XC1015, TiCN coated. Suited for cast iron.
Specifications
Ansi codeXAHT060525SR-GM
Chip breakerGM
Coating finishTiCN
Coating processCVD
Corner radius0.0984
Cutter series compatibility78PAO
Cutting edge styleChamfered; Honed
Included angle degree45
Inscribed circle in43/64
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size06
Insert size code060525
Insert styleXAHT
Iso codeXAHT060525SR-GM
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog number7812064
Manufacturer gradeXC1015
Material applicationCast Iron
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle3.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.6732
