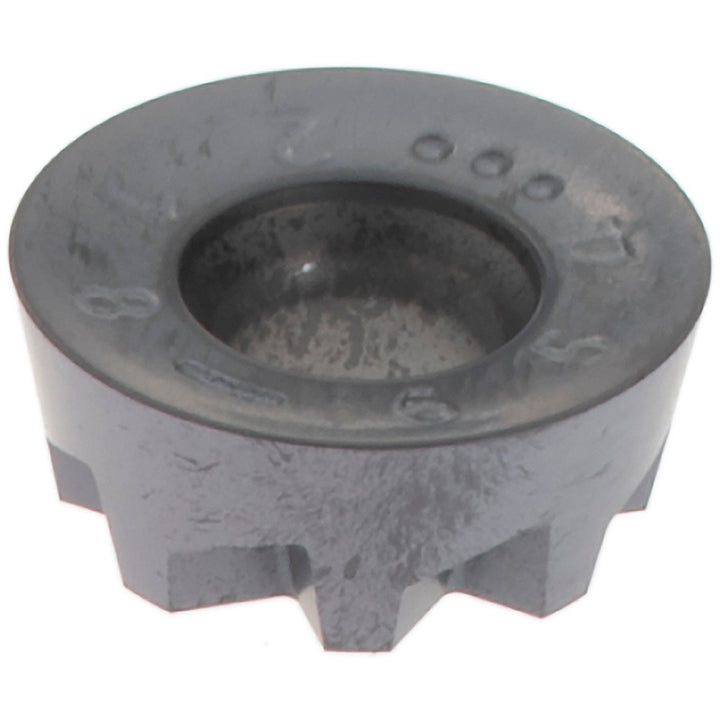

RPHT1204MOEN-GL Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813011
MFR# 7813011ISO/ANSI# RPHT1204MOEN-GLSeries RPHT
$17.39List $22.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeXP2040
MaterialSolid Carbide
CoatingTiALN
Description
The OSG 7813011 is a RPHT1204MOEN-GL solid carbide indexable insert, grade XP2040, TiALN coated. Suited for stainless steel.
Specifications
Ansi codeRPHT1204MOEN-GL
Chip breakerGL
Coating finishTiALN
Coating processPVD
Convex radius0.2362
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHT
Iso codeRPHT1204MOEN-GL
Length0.4724
Manufacturers catalog number7813011
Manufacturer gradeXP2040
Material applicationStainless Steel; Steel
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle11.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Width0.4724
