OSG

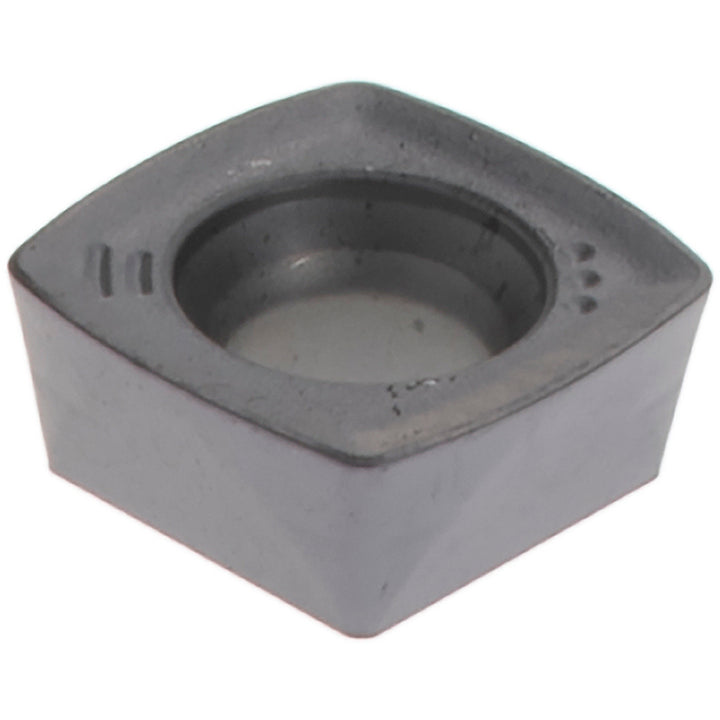

SDMT09T308SR-GM Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813020
MFR# 7813020ISO/ANSI# SDMT09T308SR-GMSeries 78PHC
$15.64List $20.06
Save 22%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeXP2040
MaterialSolid Carbide
CoatingTiALN
Description
The OSG 7813020 is a SDMT09T308SR-GM solid carbide indexable insert, grade XP2040, TiALN coated. Suited for stainless steel.
Specifications
Ansi codeSDMT09T308SR-GM
Chip breakerGM
Coating finishTiALN
Coating processCVD
Corner radius in1/32
Cutter series compatibility78PHC
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSDMT
Iso codeSDMT09T308SR-GM
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog number7813020
Manufacturer gradeXP2040
Material applicationStainless Steel; Steel
Maximum depth of cut0.0394
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle15.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
