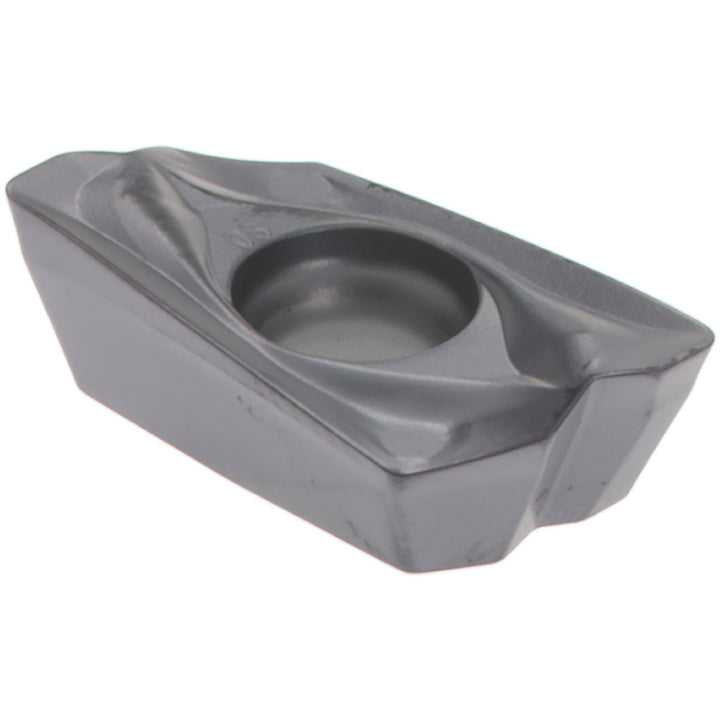

ZDKT150508SR-GM Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813028

OSG

ZDKT150508SR-GM Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813028

MFR# 7813028ISO/ANSI# ZDKT150508SR-GMSeries 78PSE

$23.22List $29.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeXP2040
MaterialSolid Carbide
CoatingTiALN

Description

The OSG 7813028 is a ZDKT150508SR-GM solid carbide indexable insert, grade XP2040, TiALN coated. Suited for stainless steel.

Specifications

Ansi codeZDKT150508SR-GM
Chip breakerGM
Coating finishTiALN
Coating processPVD
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3661
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleZDKT
Iso codeZDKT150508SR-GM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog number7813028
Manufacturer gradeXP2040
Material applicationStainless Steel; Steel
Maximum depth of cut0.0630
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle15
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.3661
