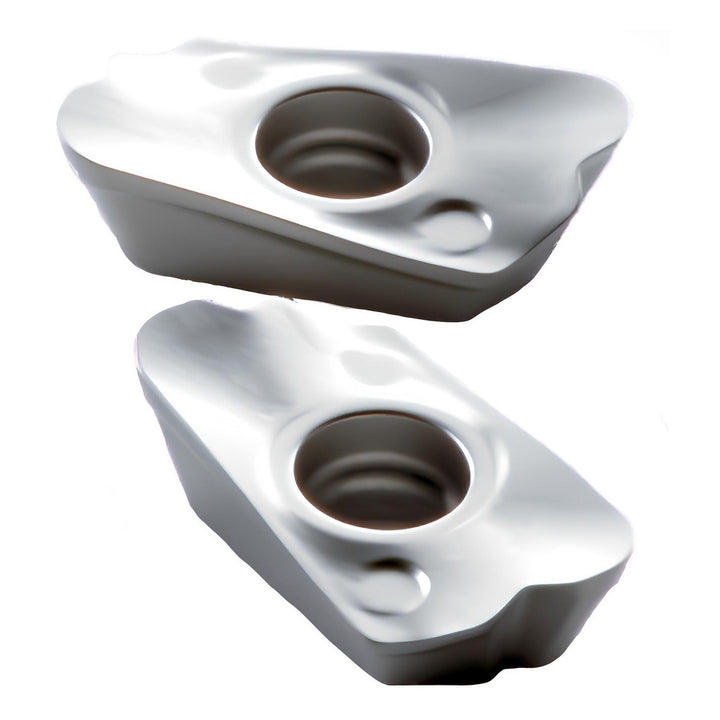

ZDKT11T312SR-GM Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813053

OSG

ZDKT11T312SR-GM Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813053

MFR# 7813053ISO/ANSI# ZDKT11T312SR-GMSeries 78PSE

$15.85List $20.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeXP2040
MaterialSolid Carbide
CoatingTiALN

Description

The OSG 7813053 is a ZDKT11T312SR-GM solid carbide indexable insert, grade XP2040, TiALN coated. Suited for stainless steel.

Specifications

Ansi codeZDKT11T312SR-GM
Chip breakerGM
Coating finishTiALN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityPSEL
Cutting edge effective length (mm)1.00
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T312
Insert styleZDKT
Iso codeZDKT11T312SR-GM
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog number7813053
Manufacturer gradeXP2040
Material applicationStainless Steel; Steel
Maximum depth of cut0.0394
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle15.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2677
