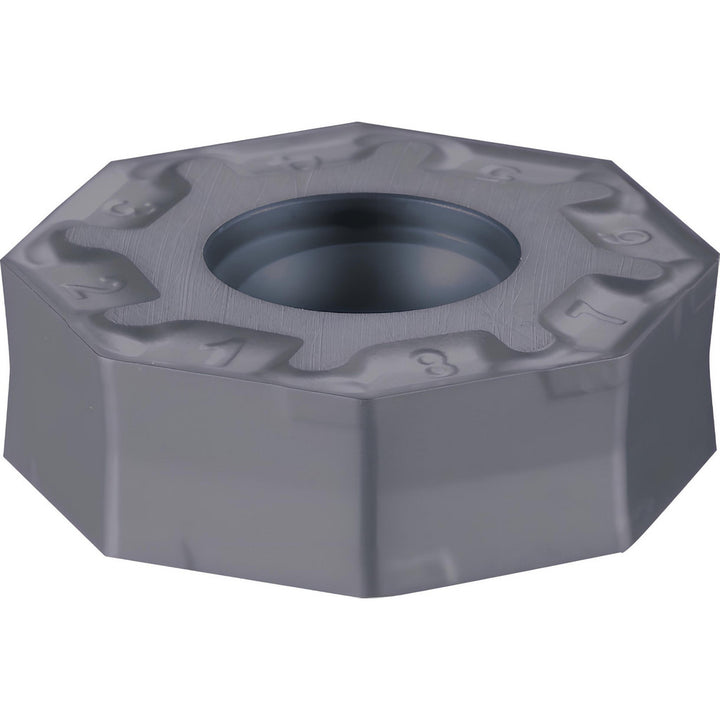

OZKU060508SR-GM Solid Carbide Insert, Grade XP2040, TiALN - OSG 7813062
MFR# 7813062ISO/ANSI# OZKU060508SR-GMSeries 78PAO
$30.04List $38.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC43/64
ShapeOctagon
GradeXP2040
MaterialSolid Carbide
CoatingTiALN
Description
The OSG 7813062 is a OZKU060508SR-GM solid carbide indexable insert, grade XP2040, TiALN coated. Suited for stainless steel.
Specifications
Ansi codeOZKU060508SR-GM
Chip breakerGM
Coating finishTiALN
Coating processPVD
Corner radius in1/32
Cutter series compatibility78PAO
Cutting edge styleChamfered; Honed
Included angle degree135
Inscribed circle in43/64
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060508
Insert styleOZKU
Iso codeOZKU060508SR-GM
Length in43/64
Length range0.6500 to 0.7000
Manufacturers catalog number7813062
Manufacturer gradeXP2040
Material applicationStainless Steel; Steel
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges16
Primary workpiece materialStainless Steel
RakeNegative
Relief angle3.00
Secondary workpiece materialSteel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.6719
