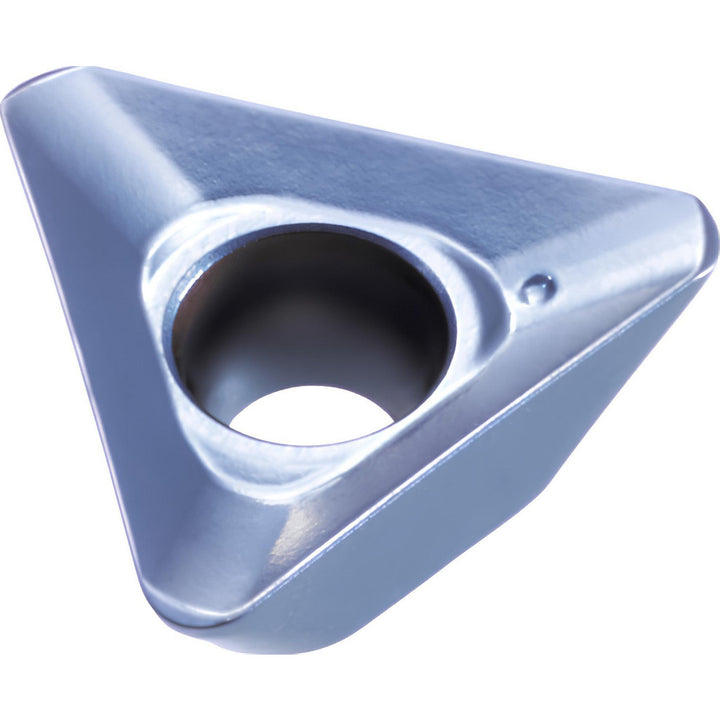

TPKT110308ER Solid Carbide Insert, Grade XP2040, TiAlN - OSG 7813205
MFR# 7813205ISO/ANSI# TPKT110308ERSeries 78PLDS
$27.54List $35.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeXP2040
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 7813205 is a TPKT110308ER solid carbide indexable insert, grade XP2040, TiAlN coated. Suited for stainless steel.
Specifications
Ansi codeTPKT110308ER
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Included angle degree60
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size11
Insert size code110308
Insert styleTPKT
Iso codeTPKT110308ER
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog number7813205
Manufacturer gradeXP2040
Material applicationStainless Steel; Steel
Maximum depth of cut0.4016
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Rake angle11
Relief angle11.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.4331
