SDMT09T308SR-GM Solid Carbide Insert, Grade XP3035, TiALN - OSG 7814020

OSG

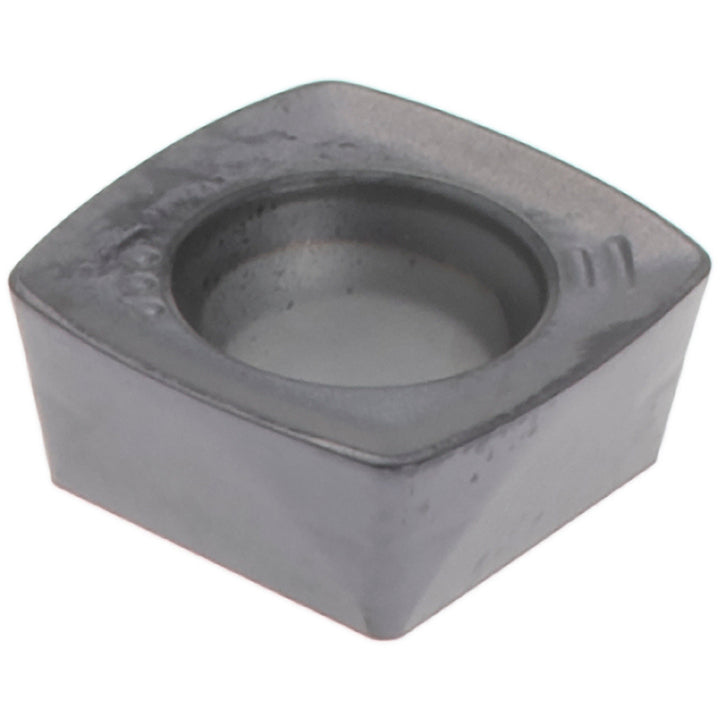

SDMT09T308SR-GM Solid Carbide Insert, Grade XP3035, TiALN - OSG 7814020

MFR# 7814020ISO/ANSI# SDMT09T308SR-GMSeries 78PHC

$15.64List $20.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeXP3035
MaterialSolid Carbide
CoatingTiALN

Description

The OSG 7814020 is a SDMT09T308SR-GM solid carbide indexable insert, grade XP3035, TiALN coated. Suited for steel.

Specifications

Ansi codeSDMT09T308SR-GM
Chip breakerGM
Coating finishTiALN
Coating processCVD
Corner radius in1/32
Cutter series compatibility78PHC
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSDMT
Iso codeSDMT09T308SR-GM
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog number7814020
Manufacturer gradeXP3035
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.0394
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
