SXMT120410SR-GM Solid Carbide Insert, Grade XP3035, TiALN - OSG 7814022

OSG

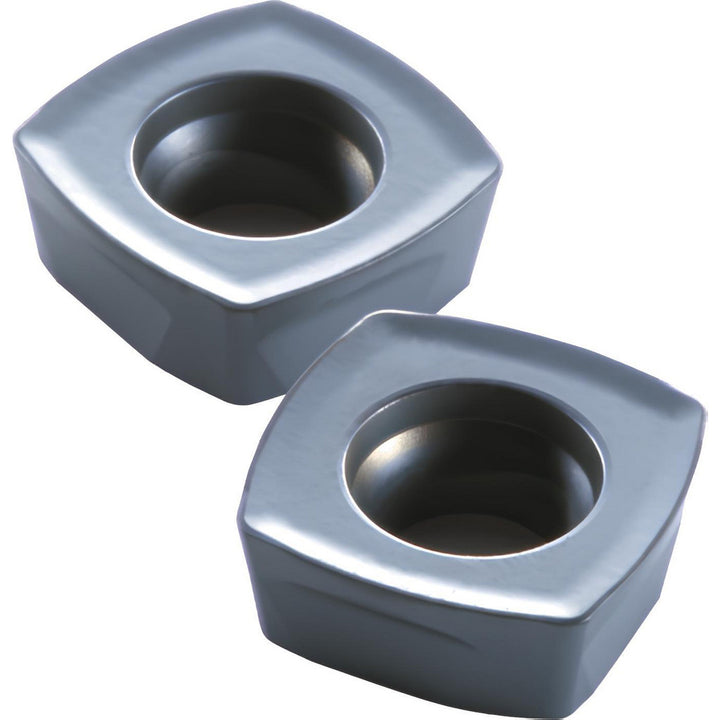

SXMT120410SR-GM Solid Carbide Insert, Grade XP3035, TiALN - OSG 7814022

MFR# 7814022ISO/ANSI# SXMT120410SR-GMSeries 78PHC

$18.78List $24.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeXP3035
MaterialSolid Carbide
CoatingTiALN

Description

The OSG 7814022 is a SXMT120410SR-GM solid carbide indexable insert, grade XP3035, TiALN coated. Suited for steel.

Specifications

Ansi codeSXMT120410SR-GM
Chip breakerGM
Coating finishTiALN
Coating processCVD
Corner radius0.0394
Cutter series compatibility78PHC
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120410
Insert styleSXMT
Iso codeSXMT120410SR-GM
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number7814022
Manufacturer gradeXP3035
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle9.00
Secondary workpiece materialStainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
