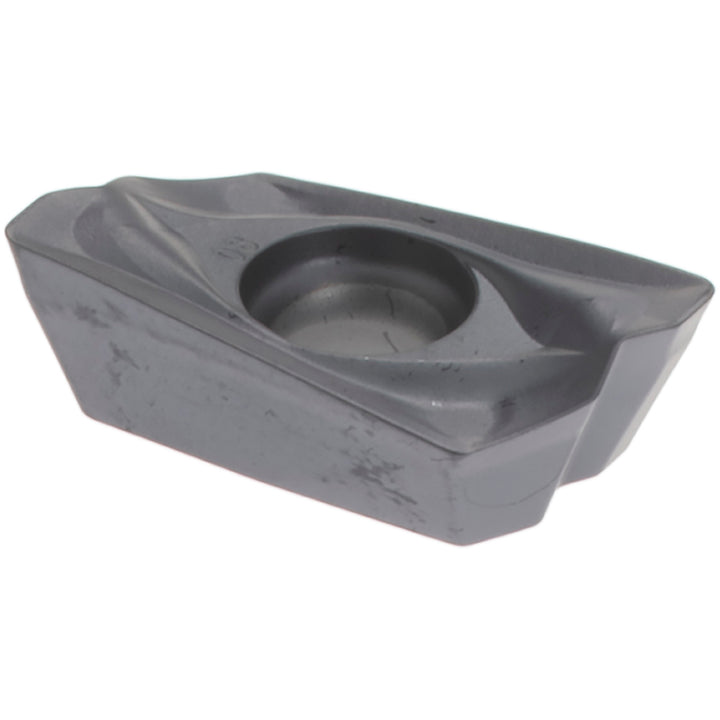

ZDKT150508SR-GM Solid Carbide Insert, Grade XP3035, TiALN - OSG 7814029

MFR# 7814029ISO/ANSI# ZDKT150508SR-GMSeries 78PSE

$23.22List $29.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeXP3035
MaterialSolid Carbide
CoatingTiALN

Description

The OSG 7814029 is a ZDKT150508SR-GM solid carbide indexable insert, grade XP3035, TiALN coated. Suited for steel.

Specifications

Ansi codeZDKT150508SR-GM
Chip breakerGM
Coating finishTiALN
Coating processPVD
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3661
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleZDKT
Iso codeZDKT150508SR-GM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog number7814029
Manufacturer gradeXP3035
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.0630
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.3661
