OSG

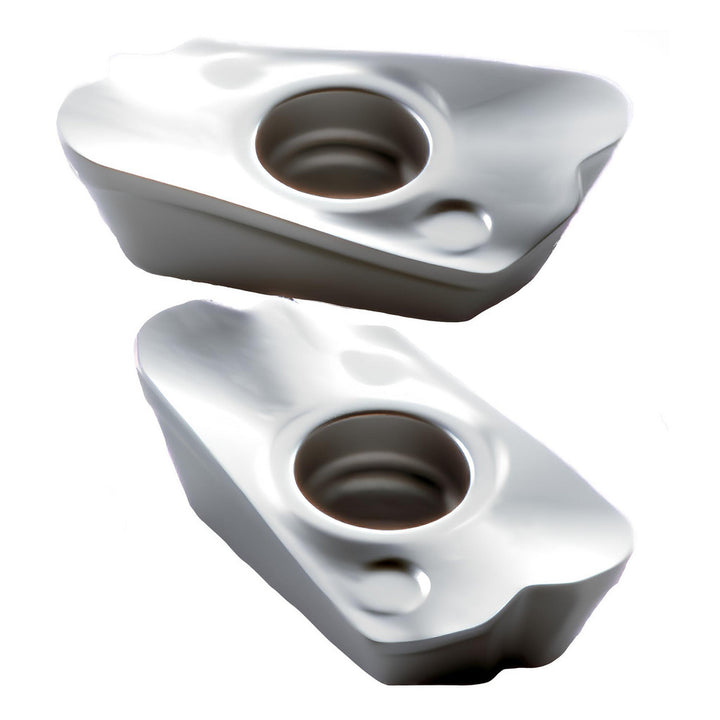

ZDKT11T308SR-GM Solid Carbide Insert, Grade XP3035, TiALN - OSG 7814032
MFR# 7814032ISO/ANSI# ZDKT11T308SR-GMSeries 78PSE
$17.70List $22.30
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeXP3035
MaterialSolid Carbide
CoatingTiALN
Description
The OSG 7814032 is a ZDKT11T308SR-GM solid carbide indexable insert, grade XP3035, TiALN coated. Suited for steel.
Specifications
Ansi codeZDKT11T308SR-GM
Chip breakerGM
Coating finishTiALN
Coating processPVD
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleZDKT
Iso codeZDKT11T308SR-GM
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog number7814032
Manufacturer gradeXP3035
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.0551
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15.00
Secondary workpiece materialStainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2677
