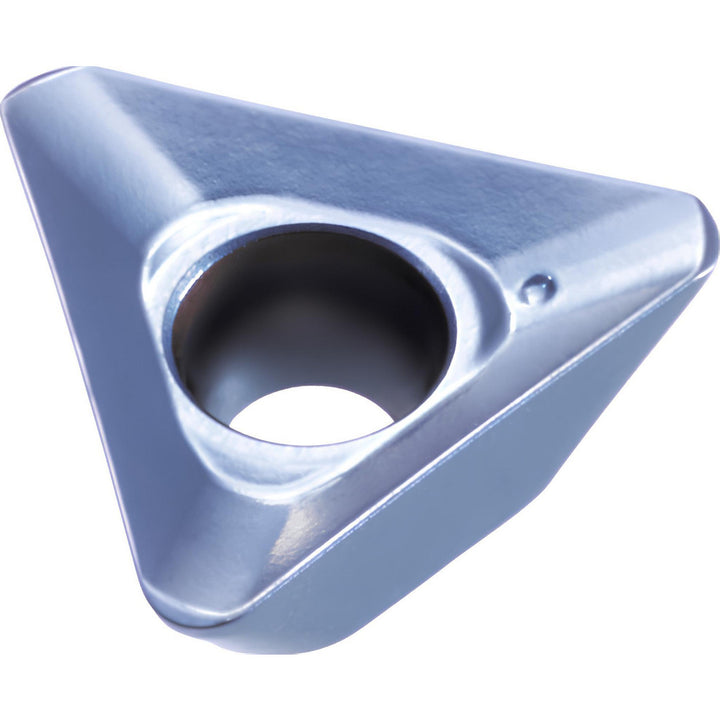

TPKT110308ER Carbide Insert, Grade XP9020, TiAlN - OSG 7814205
MFR# 7814205ISO/ANSI# TPKT110308ERSeries 78PLDS
$42.04List $52.98
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeXP9020
CoatingTiAlN
Description
The OSG 7814205 is a TPKT110308ER carbide indexable insert, grade XP9020, TiAlN coated. Suited for steel, cast iron.
Specifications
Ansi codeTPKT110308ER
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Included angle degree60
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert shapeTriangle
Insert size11
Insert size code110308
Insert styleTPKT
Iso codeTPKT110308ER
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog number7814205
Manufacturer gradeXP9020
Material applicationSteel; Cast Iron; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.4016
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle11
Relief angle11.00
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.4331
