SDMT09T308ER-SM Solid Carbide Insert, Grade XC5040, TiN - OSG 7816021

OSG

SDMT09T308ER-SM Solid Carbide Insert, Grade XC5040, TiN - OSG 7816021

MFR# 7816021ISO/ANSI# SDMT09T308ER-SMSeries 78PHC

$23.73List $30.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeXC5040
MaterialSolid Carbide
CoatingTiN

Description

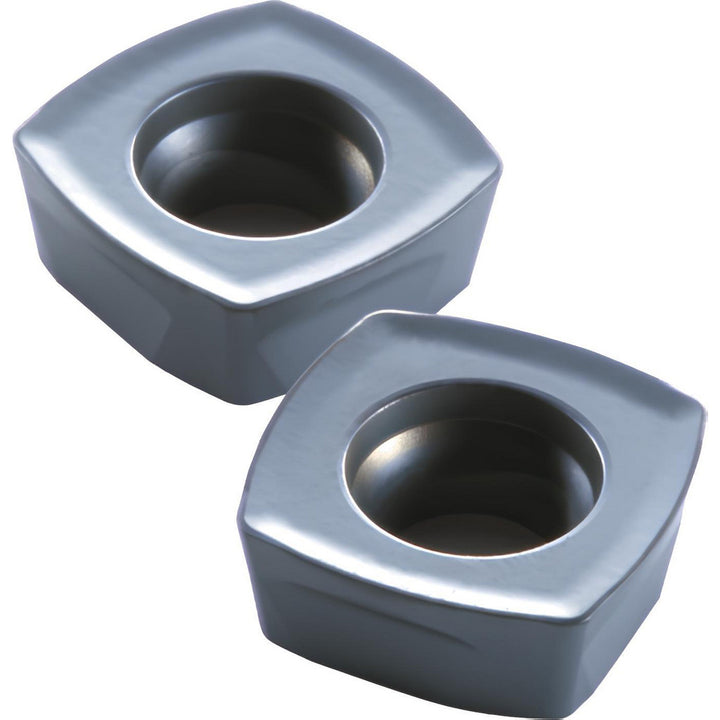

The OSG 7816021 is a SDMT09T308ER-SM solid carbide indexable insert, grade XC5040, TiN coated. Suited for superalloys & titanium.

Specifications

Ansi codeSDMT09T308ER-SM
Chip breakerSM
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility78PHC
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSDMT
Iso codeSDMT09T308ER-SM
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog number7816021
Manufacturer gradeXC5040
Material applicationSuperalloys & Titanium; Stainless Steel
Maximum depth of cut0.0394
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle15.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
