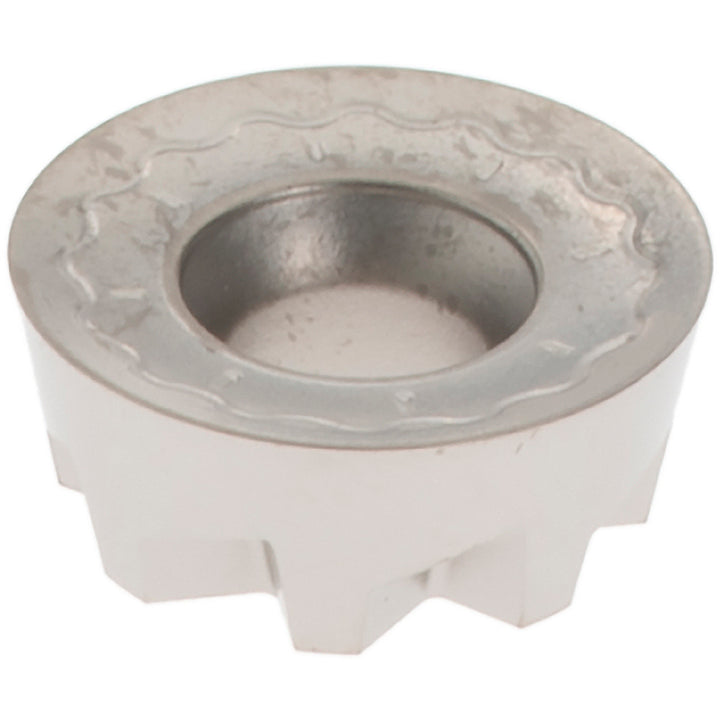

RPHT1204M8EN-SM Solid Carbide Insert, Grade XC5040, TiN - OSG 7816051
MFR# 7816051ISO/ANSI# RPHT1204M8EN-SMSeries RPHT
$25.19List $32.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeXC5040
MaterialSolid Carbide
CoatingTiN
Description
The OSG 7816051 is a RPHT1204M8EN-SM solid carbide indexable insert, grade XC5040, TiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeRPHT1204M8EN-SM
Chip breakerSM
Coating finishTiN
Coating processCVD
Convex radius0.2362
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHT
Iso codeRPHT1204M8EN-SM
Length0.4724
Manufacturers catalog number7816051
Manufacturer gradeXC5040
Material applicationSuperalloys & Titanium; Stainless Steel
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Width0.4724
