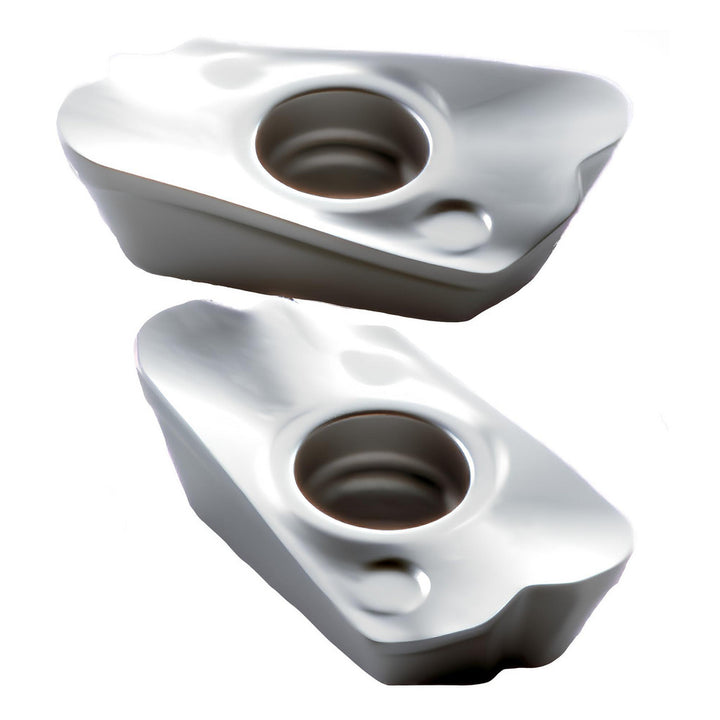

ZDKT150508ER-SM Solid Carbide Insert, Grade XC5040, TiN - OSG 7816056

OSG

ZDKT150508ER-SM Solid Carbide Insert, Grade XC5040, TiN - OSG 7816056

MFR# 7816056ISO/ANSI# ZDKT150508ER-SMSeries 78PSE

$31.85List $40.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeXC5040
MaterialSolid Carbide
CoatingTiN

Description

The OSG 7816056 is a ZDKT150508ER-SM solid carbide indexable insert, grade XC5040, TiN coated. Suited for superalloys & titanium.

Specifications

Ansi codeZDKT150508ER-SM
Chip breakerSM
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.3661
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleZDKT
Iso codeZDKT150508ER-SM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog number7816056
Manufacturer gradeXC5040
Material applicationSuperalloys & Titanium; Stainless Steel
Maximum depth of cut0.0630
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle15.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.3661
