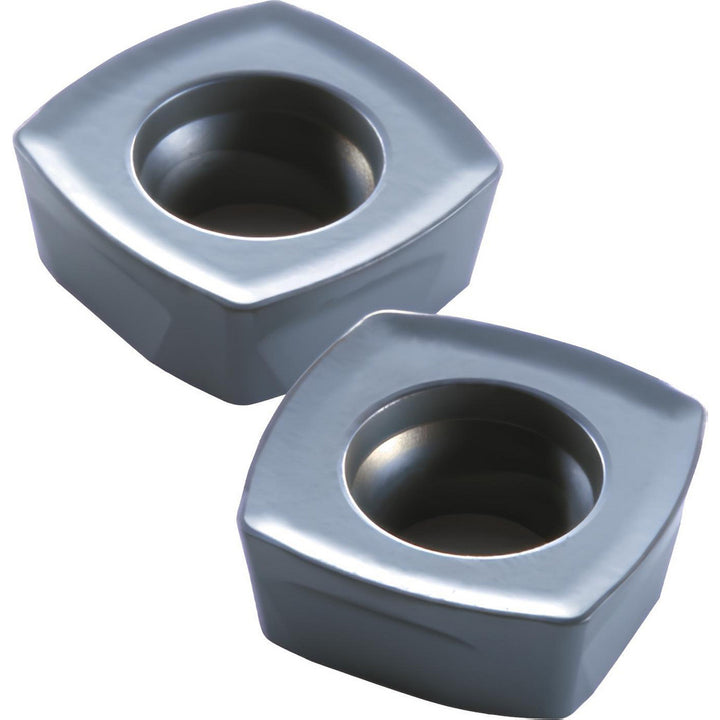

SXMT120410SR-GM Solid Carbide Insert, Grade XP2025, TiALN - OSG 7826022
MFR# 7826022ISO/ANSI# SXMT120410SR-GMSeries 78PHC
$19.58List $25.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeXP2025
MaterialSolid Carbide
CoatingTiALN
Description
The OSG 7826022 is a SXMT120410SR-GM solid carbide indexable insert, grade XP2025, TiALN coated. Suited for stainless steel.
Specifications
Ansi codeSXMT120410SR-GM
Chip breakerGM
Coating finishTiALN
Coating processPVD
Corner radius0.0394
Cutter series compatibility78PHC
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120410
Insert styleSXMT
Iso codeSXMT120410SR-GM
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number7826022
Manufacturer gradeXP2025
Material applicationStainless Steel; Steel
Maximum depth of cut0.0512
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle9.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
