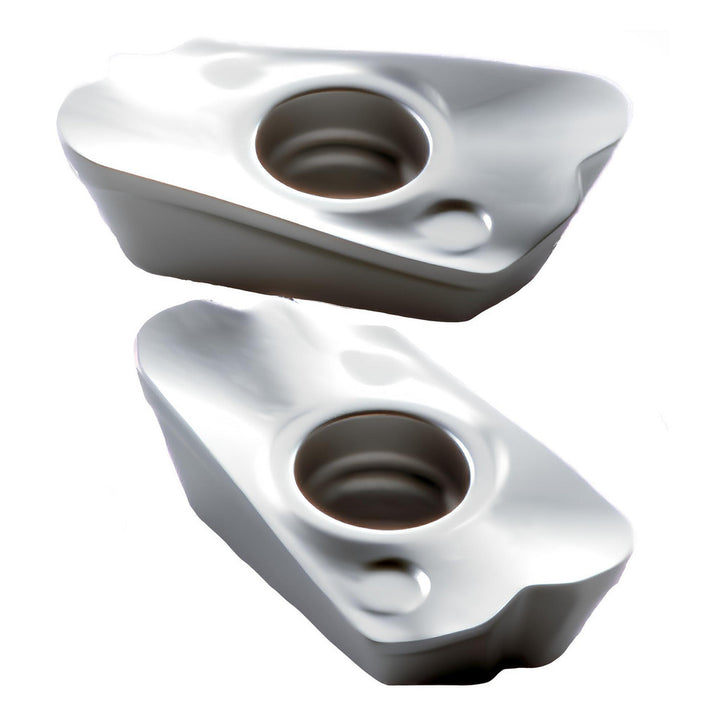

ZDKT150508SR-GL Solid Carbide Insert, Grade XP2025, TiALN - OSG 7826057

MFR# 7826057ISO/ANSI# ZDKT150508SR-GLSeries 78PSE

$24.93List $31.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeXP2025
MaterialSolid Carbide
CoatingTiALN

Description

The OSG 7826057 is a ZDKT150508SR-GL solid carbide indexable insert, grade XP2025, TiALN coated. Suited for stainless steel.

Specifications

Ansi codeZDKT150508SR-GL
Chip breakerGL
Coating finishTiALN
Coating processPVD
Corner radius in1/32
Cutter series compatibility78PSE
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3661
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleZDKT
Iso codeZDKT150508SR-GL
Length in1/16
Length range0.5000 to 0.6000
Manufacturers catalog number7826057
Manufacturer gradeXP2025
Material applicationStainless Steel; Steel
Maximum depth of cut0.0630
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle15.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.3661
