OSG

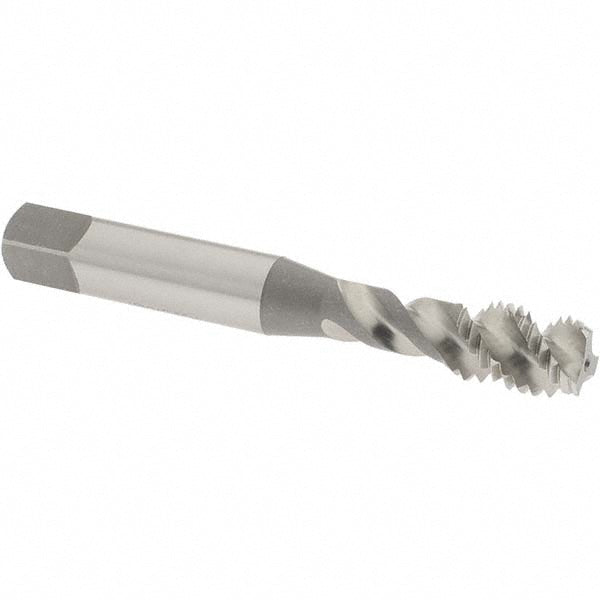

5/16-18 UNC High-Speed Steel Tap - OSG 8013000
MFR# 8013000Series S108
$29.23List $37.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
Description
The OSG 8013000 is a 5/16-18 UNC High-Speed Steel tap. 3 flutes.
Specifications
ChamferBottoming
Flute directionRight Hand
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel; Cast Iron; Hardened Steel
Number of flutes3
Overall length in2-23/32
Threads per inch18
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
