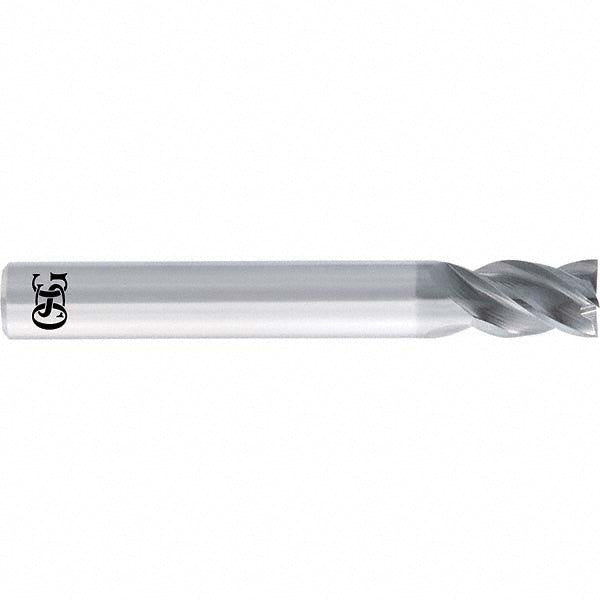

1/2" 4-Flute Solid Carbide Square End Mill - OSG 82001421

OSG

1/2" 4-Flute Solid Carbide Square End Mill - OSG 82001421

MFR# 82001421Series 8200

$101.60List $130.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide

Description

The OSG 82001421 is a 1/2 4-flute Solid Carbide square end mill. 1 length of cut, 3 overall length. Series 8200.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Flute typeStraight
Length of cut in1
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0012 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Widia1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879527 $73.16 Iscar1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401163 $90.57 SGS1/2" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36858 $101.89 Seco1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03083833 $117.99
