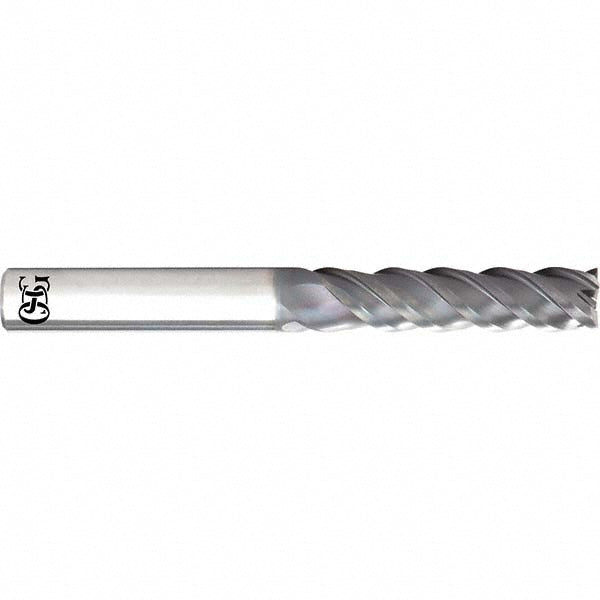

1/4" 4-Flute Solid Carbide Square End Mill, Duarise - OSG 82010121

OSG

1/4" 4-Flute Solid Carbide Square End Mill, Duarise - OSG 82010121

MFR# 82010121Series 8201

$76.47List $98.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingDuarise

Description

The OSG 82010121 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill with a Duarise finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 1 length of cut, 2-3/4 overall length. Series 8201.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDuarise
Coating finish familyDuarise
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeStraight
Helix angle42-44
Length of cut in1
Length typeLong
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in2-3/4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in1/4
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
