OSG

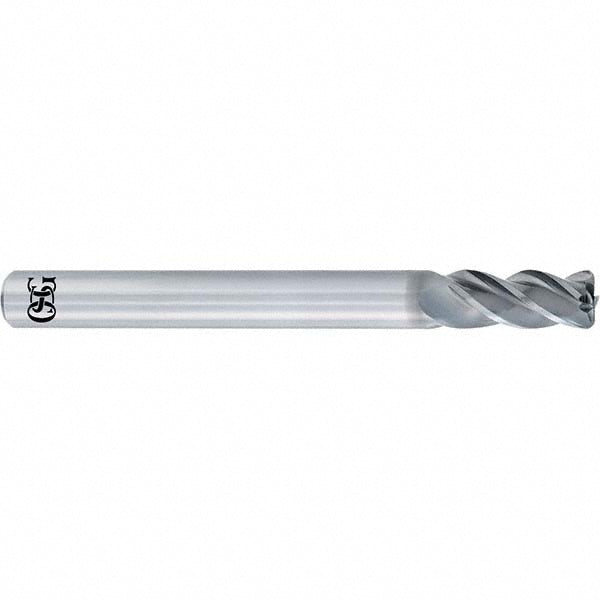

3/8" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 82101221
MFR# 82101221Series 8210
$95.46List $120.31
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingDuarise
Description
The OSG 82101221 is a 3/8 4-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1/2 length of cut, 2-1/2 overall length. Series 8210.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDuarise
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0000 to -0.0008 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut in1/2
Length typeStub
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0008 in
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
