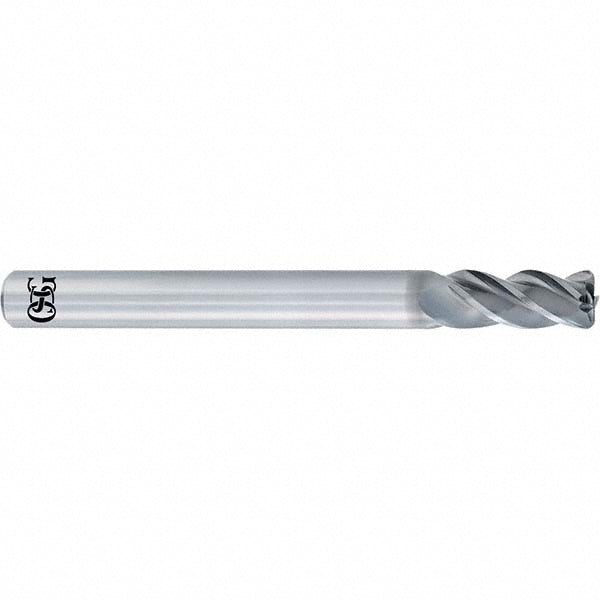

1/2" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 82104221

MFR# 82104221Series 8210

$111.66List $143.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingDuarise

Description

The OSG 82104221 is a 1/2 4-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1 length of cut, 3 overall length. Series 8210.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDuarise
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0000 to -0.0008 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut in1
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
